Crankshaft Forging, Forged Crankshaft Products
Alloy Steel Forged Spindle Shaft Forging 100T OEM For Hydraulic Generator
| Place of Origin | China |
|---|---|
| Brand Name | N/M |
| Certification | BV, DNV, ABS etc. |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in |
| Delivery Time | 15-30 days |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
| Supply Ability | 100 pieces for each months |
PRODUCT DESCRIPTION
Product Description:

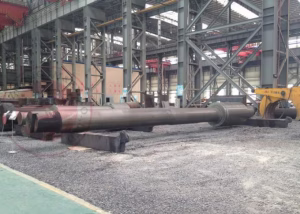

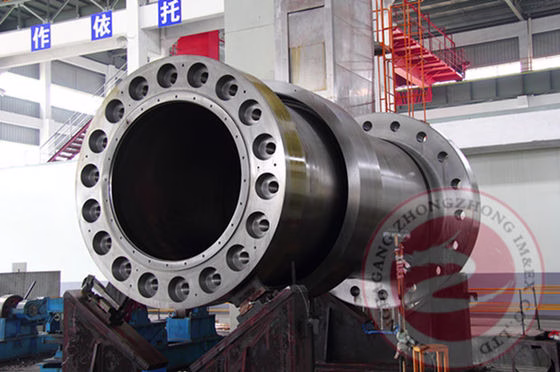

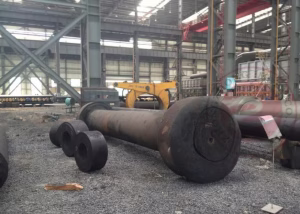

Alloy Steel Forged Spindle Shaft Forging For Hydraulic Generator
Max. Weight of 100T high wear resistance alloy steel forged hydraulic turbine main shaft
Quick Detail:
1. Hydraulic turbine main shaft, hydraulic generator and water turbine main axis, main shaft for hydraulic turbine
2. Max. OD: 2000mm, Max. L: 12000mm, Max. GW: 100T
3. Mainly applied in electric machinery, hydraulic machinery & ancillary equipment
Description:
1. The hydraulic turbine main shaft is mainly used in hydro-electric power generating equipment.
2. It is of high strength, high temperature resistance and high resistance to corrosion.
3. It could be machined to rough machined or finish machined based on drawing or customers’ requirement.
4. With all precise testing device for chemical analysis, dimensions, UT, mechanical properties, etc.
Technical Parameters:
Applications:
Hydraulic turbine main shaft is mainly used for manufacturing power generator equipment.
Specifications:
| Item | Hydraulic turbine main shaft |
|---|---|
| Material | Mainly 20SiMn, alloy steel |
| Material standard | EN, ASTM, GB, ISO |
| Dimension | Max. OD: 2000mm, Max. Length: 12000mm |
| Weight | Max.: 100T |
| Smelting process | EF+ LF + VD |
| Forging & machining process | Ingot→Heat→Forging→Heat treatment (Normalizing+tempering)→Inspection→ Rough machining→UT→2nd Heat treatment →Finished machining →Inspection |
| UT Standard | EN, ASTM, GB |
Customization:
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery.
Support and Services:
Why us?
1) We are professional in the forging of different material, alloy steel, carbon steel, stainless steel, etc, with more than 10 years’ experience.
2) We have complete forging equipments and precise machining equipments, as well as testing equipments.
3) We are responsible in producing products in shortest time as per our clients’ requirement.
