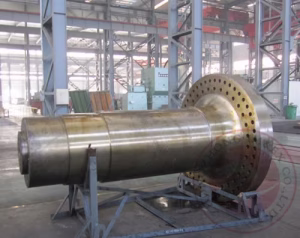

Steam Turbine Rotor Forging Products
EN10228 ASTM Open die forging, machinery shaft, drive shaft, transmission shaft, axle, rotor turbine
| Place of Origin | China |
|---|---|
| Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Fumigation-free wood package or steel package |
| Delivery Time | 30 days or as per the actual inquiry |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu |
| Supply Ability | 100 pieces per month |
PRODUCT DESCRIPTION
Product Description:
Open die forging, machinery shaft, drive shaft, transmission shaft, axle, rotor turbine
Quick Detail:
1. Open die forging: machinery shaft, alloy forging, drive shaft, transmission shaft, steel shaft, shaft forging
2. Alloy steel, carbon steel or as per customer’s requirements
3. Good quality, good service, short delivery time
Description:
Drive shaft, transmission shaft forgings can be made of alloy steel, carbon steel or other kind of material as per the customer’s requirements.
The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of ASTM, EN, DIN, GB.
Technical Parameters:
Applications:
As the one of important part of transmission system of the machinery, the drive shaft, transmission shaft widely used for machinery industry etc.
Specifications:
| Description | Drive shaft, transmission shaft, steel shaft, shaft forging, machinery forging |
|---|---|
| material | Alloy steel (42CrMo4, 35CrMo, 40CrNiMo etc.), carbon steel etc. |
| Material standard | ASTM, GB/T3077-1999, En or ISO |
| Dimension | Max. OD: 2000mm Max. Length: 15000mm |
| Weight | Max. 50 ton |
| Smelting Process: | EF+LF + VD |
| Process | Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228 |
Customization:
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Support and Services:
Why us?
1. Short production time, “in-time” delivery;
2. We can provide the steel forgings whatever size, material or type as per your requirements;
3. Good quality and competitive price
