Gear Rack Products
gear segment, quenched and tempered gear rack, induction hardening
| Place of Origin | China |
|---|---|
| Certification | MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in |
| Delivery Time | 60 days or as per the exact product |
| Payment Terms | 30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu, T/T |
| Supply Ability | 200 pieces |
PRODUCT DESCRIPTION
Product Description:

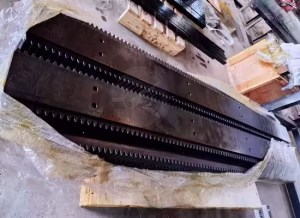

Gear segment, quenched and tempered gear rack, induction hardening
Gear rack, gear segment, round bar with teeth, induction hardening heat treatment.
Quick Detail:
1. Gear rack, gear segment
2. Forged round bar or flat bar with gears, teeth
3. Quenching+tempering+induction hardening
Description:
Basic Structure: The gear rack has teeth of the same size and shape cut at equal intervals along a flat surface or a straight rod. It can be regarded as a part of a cylindrical gear with an infinite pitch – circle diameter. There are straight – tooth racks and helical – tooth racks, which are used in pairs with straight – tooth cylindrical gears and helical – tooth cylindrical gears respectively.
Working Principle: By meshing with a cylindrical gear pinion, the gear rack converts rotational motion into linear motion. Conversely, when a linear force is applied to the gear rack, it can cause the mating gear or pinion to rotate, realizing the conversion from linear motion to rotational motion.
Main Parameters: The main parameters include addendum height, dedendum height, tooth height, tooth thickness, and pitch. Since the tooth profile of the gear rack is a straight line, each point on the tooth profile has the same pressure angle, which is equal to the inclination angle of the tooth profile (called the tooth – form angle), and the standard value is 20 °. The line parallel to the addendum line and with the tooth thickness equal to the tooth space width is called the reference line (mid – line), which is the reference line for calculating the size of the gear rack.
Technical Parameters:
Applications:
Gear racks are widely used in various mechanical equipment, such as lifting mechanisms, positioning mechanisms, and conveying systems in machine tools, automobiles, and construction machinery. They are suitable for occasions that require linear reciprocating motion or high – precision positioning, and can withstand certain loads and ensure stable transmission.
Specifications:
Customization:
Competitive Advantage:
Quality control and management to the whole produce process, including raw material preparing, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Support and Services:
Why us?
1. Short production time, “in-time” delivery;
2. We can provide the steel forgings whatever size, material or type as per your requirements;
3. Good quality and competitive price
Years of forging, machining, precision gears, rack of production experience and perfect processing equipment, is the foundation of our product quality control.
