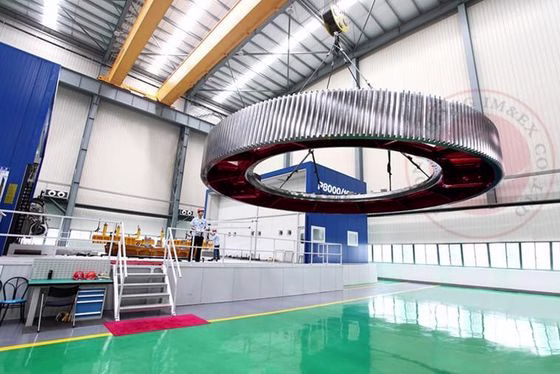

Large Precision Forged Herringbone Gear Forging For Cement Machinery

Place of Origin	China
Certification	MTC, Chemical composition, mechanical properties, UT, MT, dimension report, heat treatment record et
Minimum Order Quantity	1 piece
Packaging Details	Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in
Delivery Time	60 days or as per the exact product
Payment Terms	30% prepayment by T/T, the balance against the receipt of the correct test certificates or as per cu
Supply Ability	100 pieces

Contact Now

PRODUCT DETAILS

LEAVE A MESSAGE

PRODUCT DESCRIPTION

Product Description:

Large Precision Cold Forged Herringbone Gear Forging For Cement Machinery

Large mining machinery ring, large precision ring, heavy precision ring, heavy metallurgical machinery Precision Gear

Gears, transmission gears, ring gear, gear box, flange, inner ring, an outer ring gear and other steel forgings used in mining machinery, metallurgical machinery, wind power gears, gear offshore oil platforms, marine gearbox.

Quick Detail:

1. Large mining machinery ring, large precision ring, ring of heavy mining machinery, heavy precision ring, ring large metallurgical machinery, heavy metallurgical machinery Precision Gear, grinding ring.

2. Forged alloy steel, cast steel, carbon steel, special materials to customer requirements.

3. The world’s largest hobbing machine, high speed grinding, machining centers, is the basis of our quality assurance.

Description:

Double column vertical machining center milling car can carry a maximum outer diameter 10000MM, maximum height 6000MM, bearing 250T; Large CNC hobbing machine can process a maximum outer diameter 10000mm, bearing 200T; the world’s first largest CNC gear shaping grinding machine imported from Germany , machinability maximum outer 8000MM, bearing 70T; advanced equipment is large precision in mining, metallurgy, wind power, slewing foundation of our processing..

It conforms to the standard of ASTM, EN, DIN, GB.

The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of ASTM, EN, DIN, GB.

Technical Parameters:

Applications:

Used in various large-scale mining equipment, metallurgical equipment, cement machinery, slewing ring and other industries.

Specifications:

Description	Large mining machinery ring, large precision ring, ring of heavy mining machinery, heavy precision ring, ring large metallurgical machinery, heavy metallurgical machinery Precision Gear, grinding ring, Slewing.
material	Alloy steel (4140, 42CrMo4, 4340,18CrNiMo7-6 etc.), carbon steel, stainless steel etc.
Material standard	ASTM ,GB,EN,ISO
Dimension	Max. ID: 10000mm Max. Length: 6000mm
Weight	Max.250 ton
Smelting Process:	EF+LF + VD
Process	Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard	ASTM A388 or EN10228

Customization:

Competitive Advantage:

Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.

Excellent product quality and service, competitive price, “in-time” delivery

Support and Services:

Why us?

1. Short production time, “in-time” delivery;

2. We can provide the steel forgings whatever size, material or type as per your requirements;

3. Good quality and competitive price

Years of forging, machining, precision gears, rack of production experience and perfect processing equipment, is the foundation of our product quality control.
