Marine Rudder, Forging For Marine Products
Propeller shaft, stern shaft, Open die forging, open die shaft forging, rudder stock, intermediate shaft, propeller shaf
| Place of Origin | Jiangyin, China |
|---|---|
| Certification | ISO, BV, ABS, DNV, |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Individual plastic wrapping, fumigation-free wooden pallet or steel shelf. All wood to fumigated in accordance with ISPM 15 |
| Delivery Time | 30-60 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pieces per month |
PRODUCT DESCRIPTION
Product Description:
Quick Detail:
1. Propeller shaft, open die forging, open die shaft forging, rudder stock, intermediate shaft, propeller shaft,rudder spindle,tail shaft, ship &boat forging
2. The factory is certified by ABS, DNV, BV, LR, NK etc.
3. Alloy steel, carbon steel or as per customer’s requirements
Description:

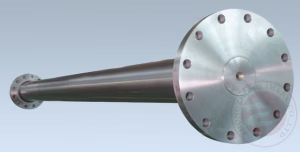

Forged steel shaft-marine & boat shaft forging: propeller shaft, stern shaft, intermediate shaft/ tail shaft/ propeller shaft/ is widely used for large, middle and small size cargo vessel etc.
The manufacturing equipment is 25~80MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the requirements of ABS, DNV, BV, GL, LR, KR, NK and CCS.
Material ready—–Ingot billets, slab, round bar—-Chemical analysis—-cutting—-Forging—-Heat treatment—-Inspection—-Stock of un-machined forgings—-Lathe—-test—-Marking—-Packing after machining finished
Technical Parameters:
Applications:
The intermediate shaft is for transmitting the torque, it is widely used for large, middle and small size cargo vessel etc.
The factory has been certified by ABS, DNV, BV, GL, LR, KR, NK and CCS.
Specifications:
Description Propeller shaft, stern shaft, open die forging, open die shaft forging, rudder stock, intermediate shaft, propeller shaft,rudder spindle,tail shaft, ship &boat forging material Carbon manganese steel (20Mn2, 60Mn, 25Mn, 45# etc.), alloy steel (42CrMo4 etc.)
Material standard ASTM, EN or ISO etc.
Dimension Max. OD: 2000mm
Max. Length: 18000mm
Weight Max. 100 ton
Smelting Process: EF+LF + VD
Process Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard As per the requirements provided by classification society
Customization:
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Support and Services:
Why us?
1. Short production time, “in-time” delivery;
2. Propeller shaft, stern shaft, open die forging, open die shaft forging, rudder stock, intermediate shaft, propeller shaft,rudder spindle, tail shaft, ship &boat forging
3. Good quality and competitive price
Our Zhongzhong company has long term business in ship &boat steel forgings industry. Customers feel satisfied with our products and service.
Packing and Shipping:
FAQ:
